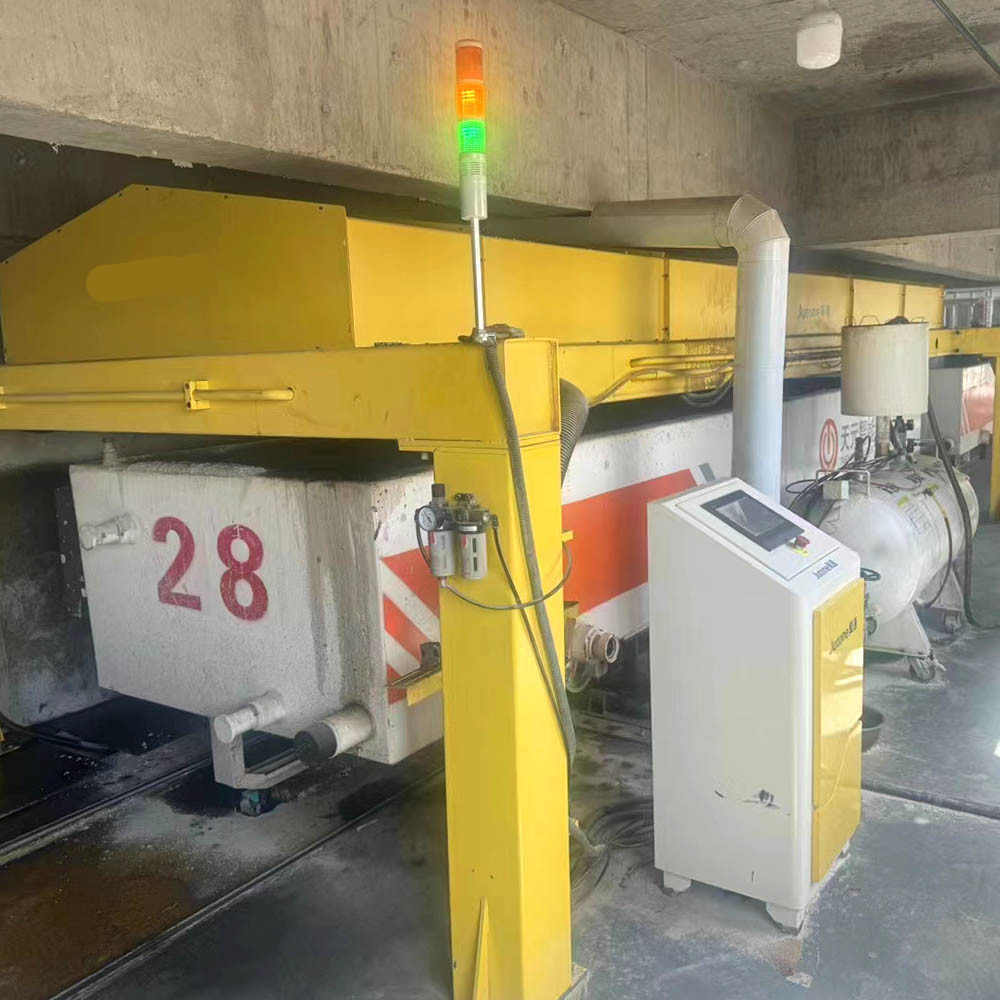

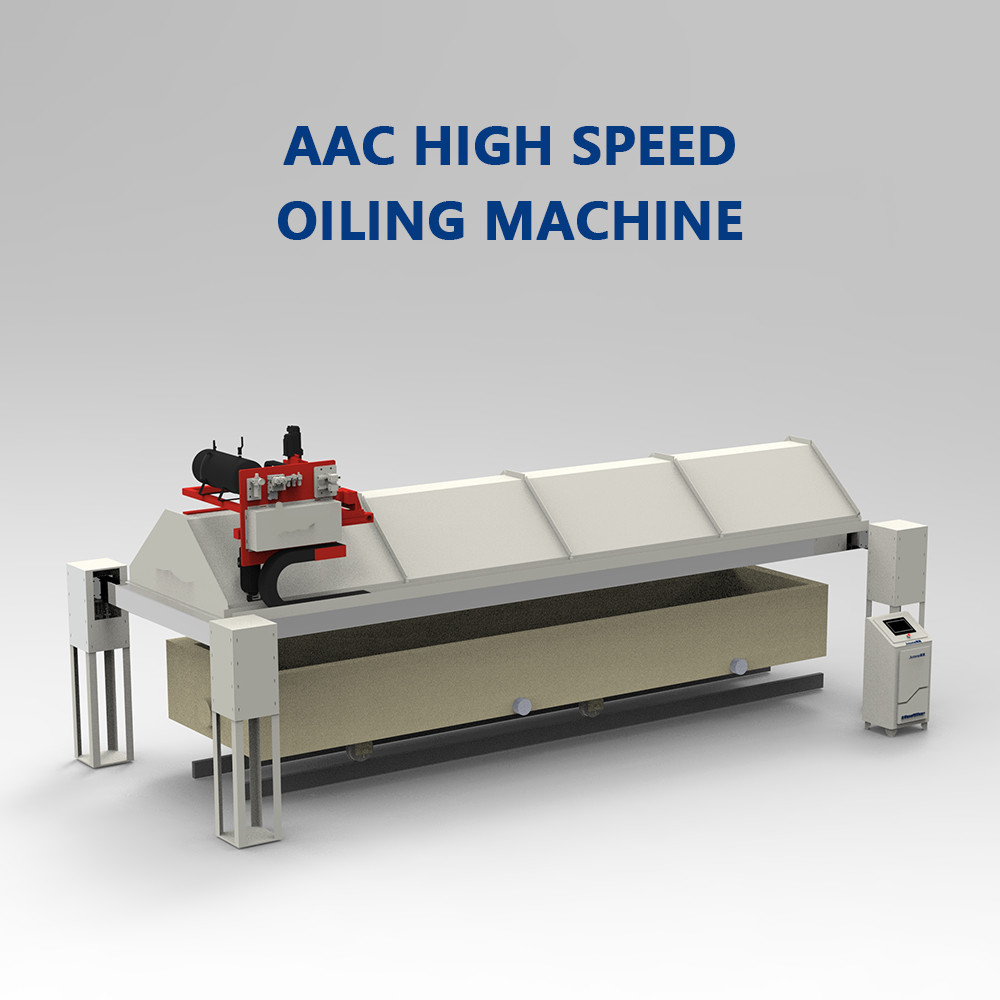

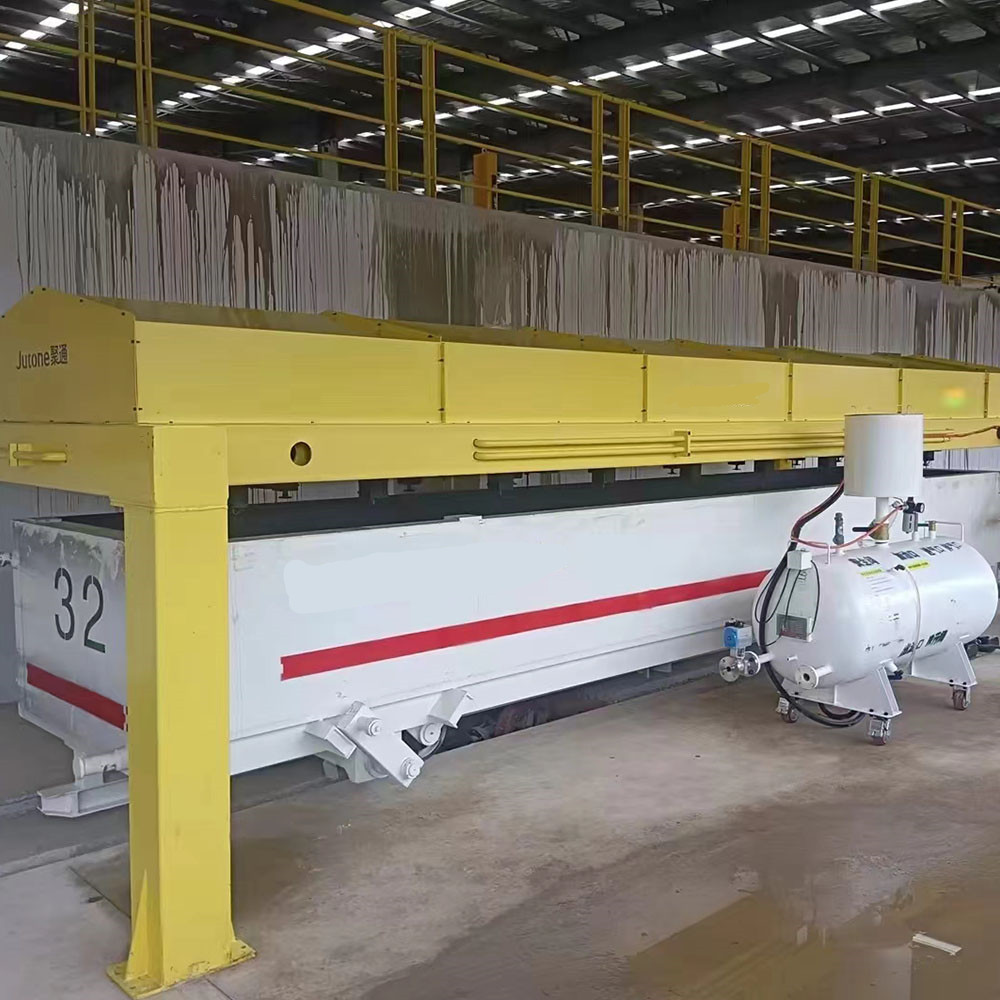

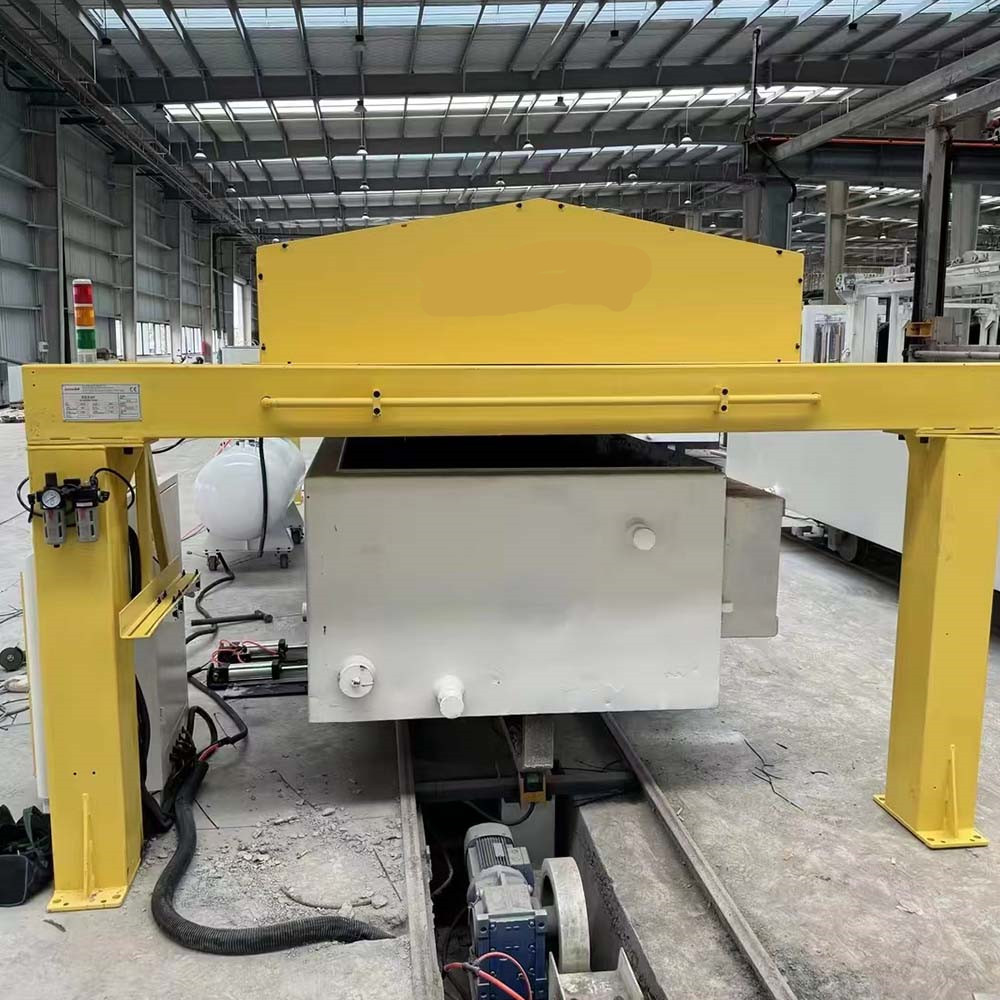

This equipment is a fully automatic high-speed oiling machine, model GS-1. It can automatically identify the mould box, position it accurately and apply a small amount of mould release oil to the inner surfaces of the mould box. The equipment information emphasizes unattended operation and the centrifugal oil coating method used by the equipment. It is used in the pouring and pre-curing section, where it works together with the related upstream and downstream operations.
In the AAC production line, the automatic oiling machine is used in the pouring and pre-curing section before mould filling. Its function is to complete mould release oil coating on the inner surfaces of the mould box so that the mould can enter the pouring process with the required oil film. The machine is designed for continuous automatic operation and aims to improve the efficiency of mould oiling while reducing oil mist in the workshop. It is arranged with the related equipment and transfer steps in the pouring and pre-curing section.
The equipment identifies the mould box, positions it, and applies mould release oil to the inner surfaces through a centrifugal coating method. The fastest working time is 30 seconds, and the main supplied items include the high-speed oiler, oil tank and electric cabinet.
This machine is used in AAC production for automatic mould oil coating before pouring. It is suitable for mould preparation processes that require automatic positioning, controlled mould release oil coverage and continuous operation in the pouring and pre-curing section. It can be used in AAC production layouts that follow the same process route, material handling sequence, and operating arrangement.
| Serial number | Name | Number | Unit | Remark |
|---|---|---|---|---|
| 1 | Jutone high-speed oiler | 1 | Platform | Motor, reducer, national standard square tube, iron plate |
| 2 | Oil tank | 1 | Piece | Oil tank instruction included |
| 3 | Electric cabinet | 1 | Piece | Includes instruction manual, work indicator, air-water separator and connector |
| 4 | Limit bracket | 1 | Kits | |
| 5 | Cylinder lock | 1 | Kits | Includes 2 cylinders |
| 6 | Spare parts | 1 | Kits | See the table below |
