Automatic Steel Mesh Fabricating & Circulation Section

This section is especially important for AAC panel production. It includes the fabrication, transfer, treatment, and circulation of reinforcing steel mesh systems used in panel manufacturing.


The value of this section lies in production continuity, reinforcement consistency, and reduced manual handling. It helps connect steel mesh preparation with later moulding, pouring, and product forming processes.

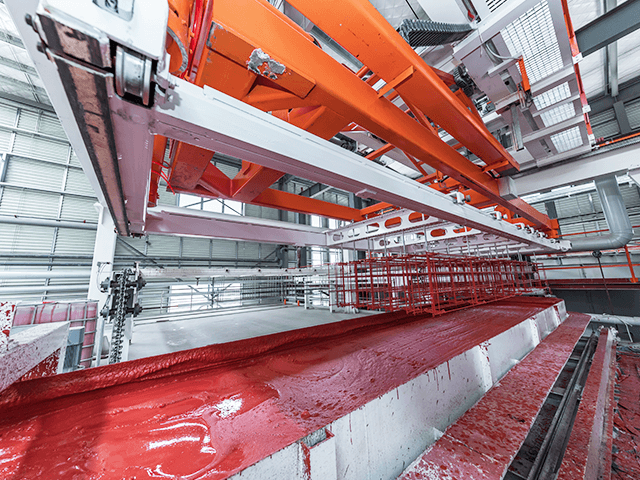

  • Anti-corrosion Dipping and Drying System

    The anticorrosive liquid dipping and drying system is used in the steel mesh fabricating and circulating section to treat assembled frames and cages before they move to the next step of AAC panel production. The dipping hoister carries the assembled frames and cages into the anticorrosive liquid tro...

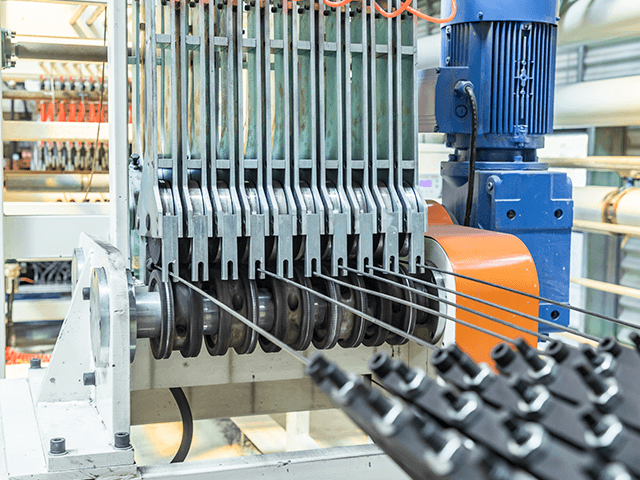

  • Mesh Welding Machine

    The mesh welding machine is used to weld straightened steel bars into steel mesh automatically for AAC panel production. It is a machine for preparing the steel mesh used in the panel process. In this section of the line, the equipment supports the conversion of straightened steel bars into mesh ass...

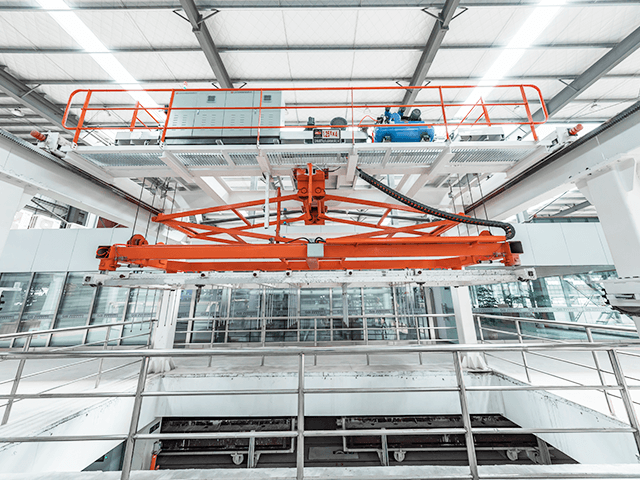

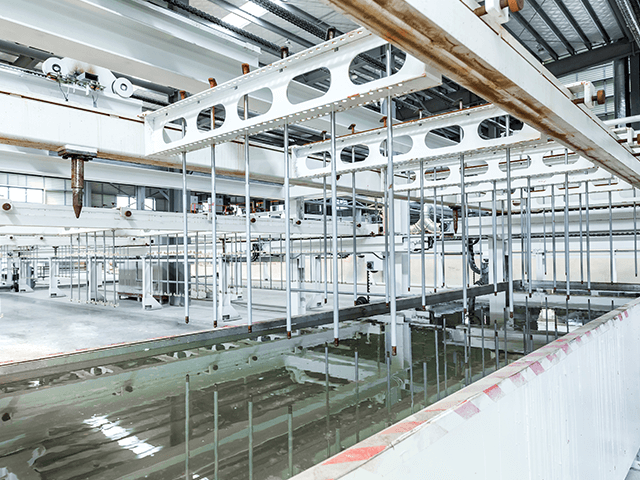

  • Wax-dipping Lifting Device

    The wax-dipping lifting device is used to lift the assembled steel mesh together with the steel pin and immerse them in a wax dipping pool. this process prevents slurry from adhering to the steel pin after demolding. The related transfer process includes steel mesh sheets or cages are immersed in so...

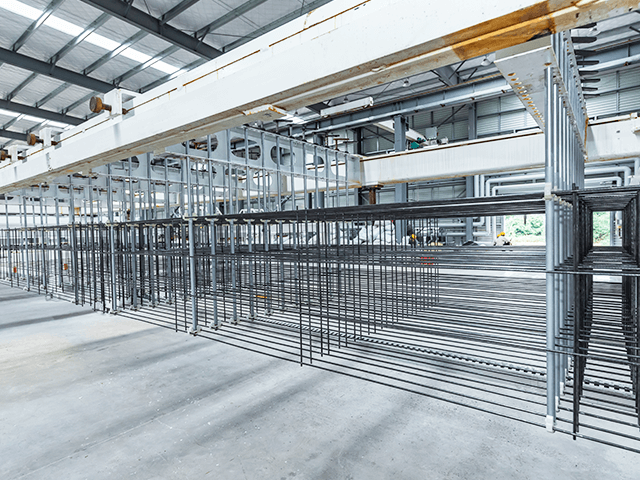

  • Mesh Frame Conveyor Line

    The mesh assembly frame conveyor line is described on the system as a circulation transmission system. this line consists of a mesh assembly frame rack, a mesh assembly frame ferry cart, and other related devices. In the steel mesh fabricating and circulating section, this arrangement provides the t...

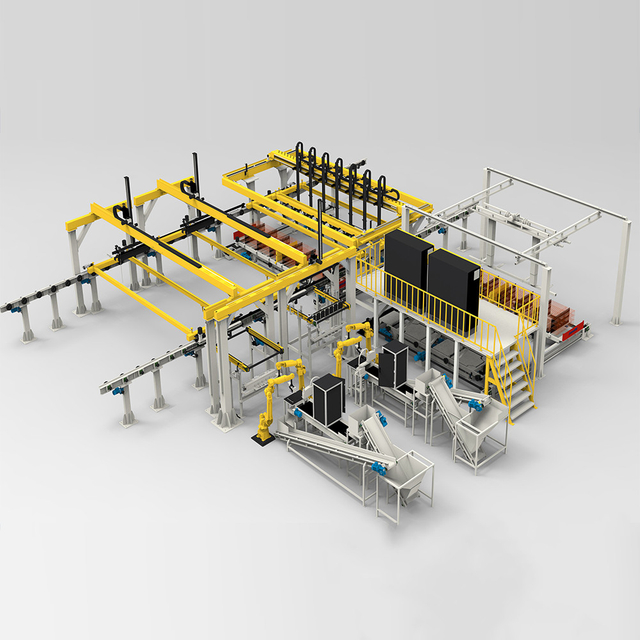

  • Automatic Networking Steel Mesh Fabrication System

    The AAC automatic networking workstation, is designed for automatic networking operations in AAC panel production. The workstation was developed over two years and combines automatic grasping orientation and arrangement of material, soldering, automatic card buckle handling, automatic cycle of mesh,...

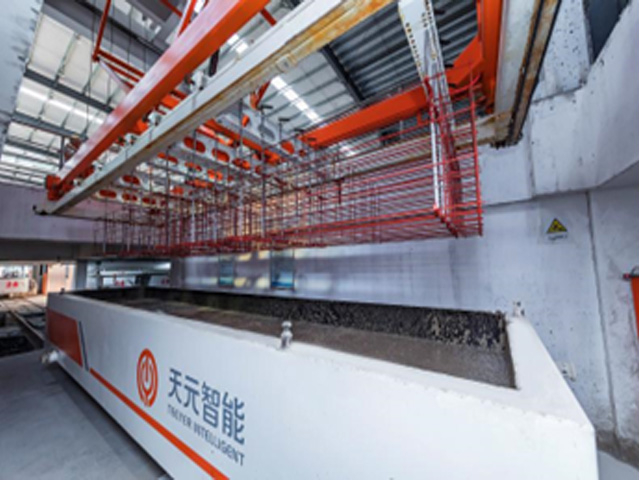

  • Rod Extractor

    The inserting and drawing out hoist is used for transporting the frame with steel mesh in the AAC panel production process. the assembled steel frame or steel cage is inserted into the mould and then pulled out of the mould by the hoister. It also explains that the accuracy of the hoister affects th...
