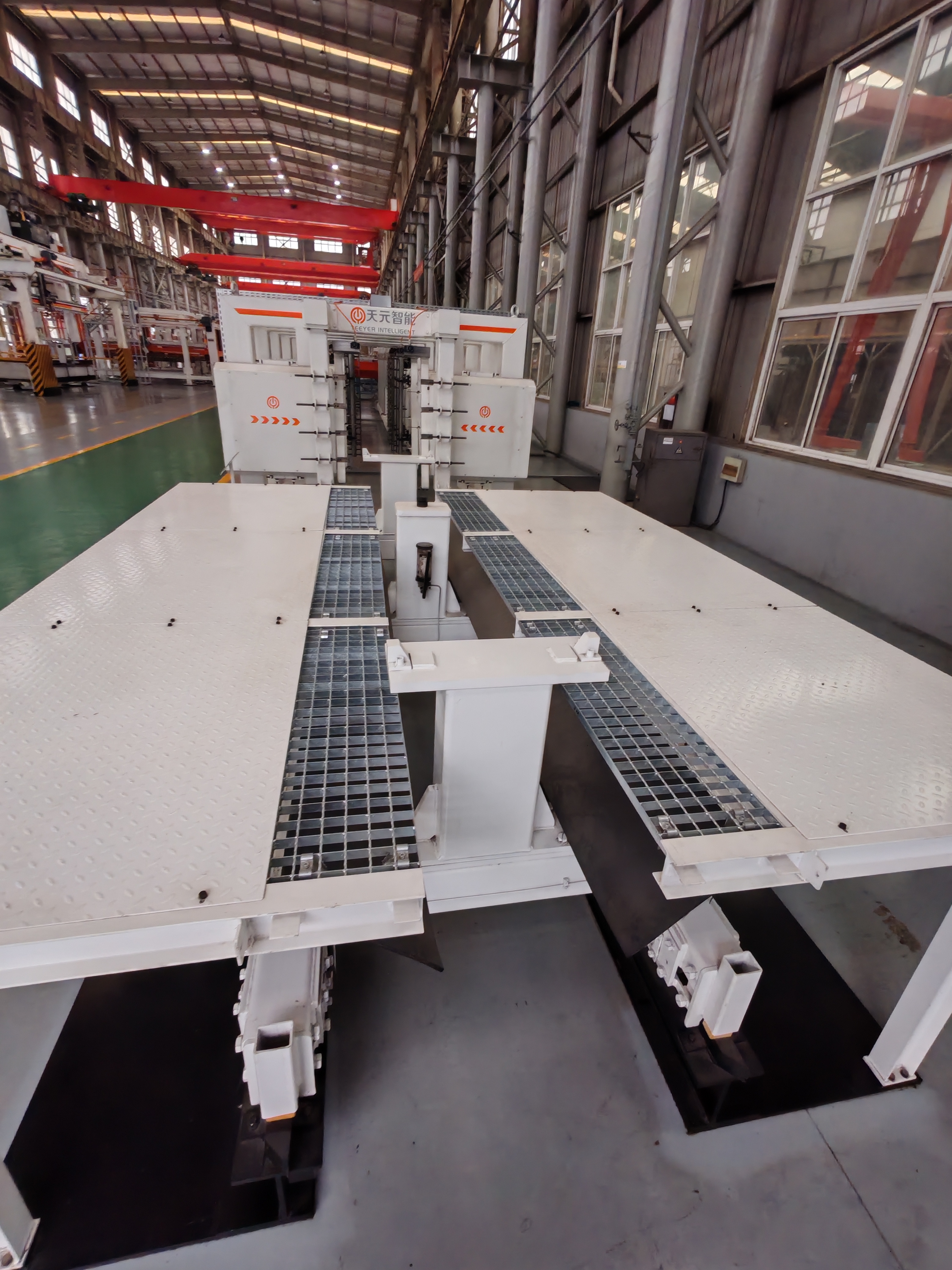

The cutting cart is used around the AAC cutting station to convey the green cake and side plate from the turning hoist to the tilting table. It is a transfer unit in the cutting section that supports cake movement and section rhythm.
In the AAC production line, the cutting cart system works around the cutting station. It conveys the green cake and side plate from the turning hoist to the tilting table. The system consists of the cutting cart, pinion-and-rack moving rail, and an optional two-cutting-cart exchanging system with an additional cart and hydraulic lifting device to increase cutting speed and final capacity.
The cutting cart moves the green cake and side plate through the cutting station transfer route. It connects the turning hoist with the tilting table and can be configured with a single-cart or exchanging-cart arrangement according to the system layout.
This equipment is used in AAC cutting sections where the green cake and side plate need to be transferred between the turning hoist and the tilting table. It is suitable for cutting layouts that require stable transfer, shorter cutting duration, and improved section throughput.
| Specification | Drive Method | Chain Tensioning Method |
|---|---|---|
| 4.2m | Chain Drive / Rack & Pinion | Mechanical Tensioning / Hydraulic Tensioning / None |
| 4.8m | Chain Drive / Rack & Pinion | Mechanical Tensioning / Hydraulic Tensioning / None |
| 6m | Chain Drive / Rack & Pinion | Mechanical Tensioning / Hydraulic Tensioning / None |
