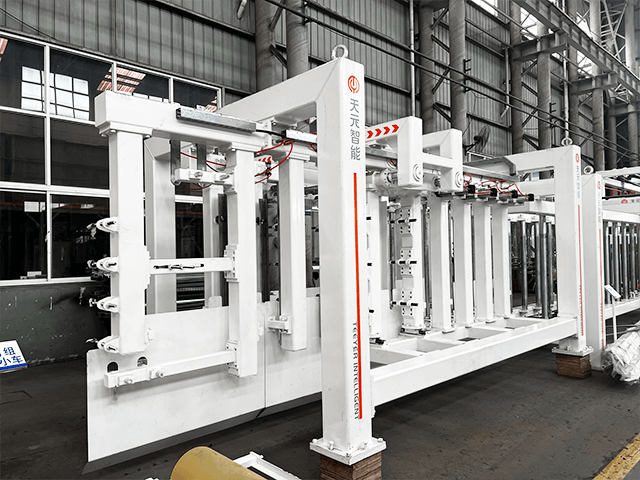

The horizontal cutting machine is used in the AAC cutting section to divide the green cake into layers after side cutting. It is arranged in the cutting line as a key cutting unit for forming the required product thickness and supporting the next cutting and transfer steps.
In the AAC production line, the green cake enters the horizontal cutting area after side cutting. The machine cuts the cake into several layers according to the set value. It is part of the AAC cutting machine system described for block and panel production, and the cutting system is described as achieving a tolerance of 1 mm in length, width, and height.

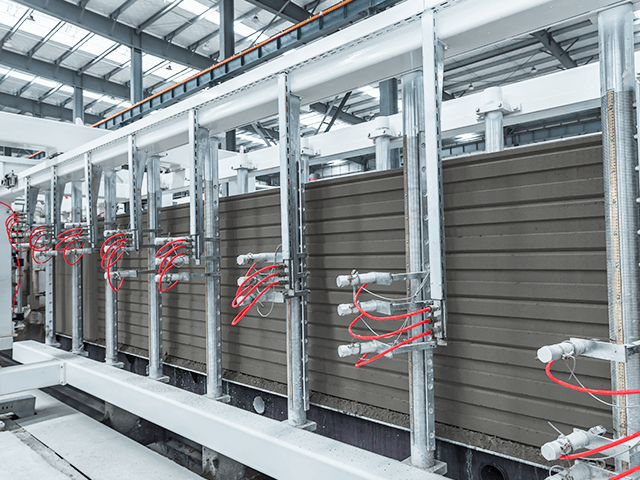

After the side cutting stage, the green cake enters the horizontal cutting area. The machine performs layer cutting according to the required setting so that the cake can continue to the following cutting and handling steps in the cutting section.
This machine is used in AAC block and panel production lines where the green cake needs to be cut into layers in the cutting section. It is suitable for process arrangements that require controlled product thickness and close coordination with the rest of the AAC cutting machine system.
| Specification | Cutting Height (mm) | Cutting Accuracy (mm) | Oscillation Method | Displacement Method |
|---|---|---|---|---|
| 4.2m | 1200 | ±1 | Frame Oscillation / Shaft Oscillation | Dual-Cylinder Displacement / Single-Cylinder Displacement |
| 4.8m | 1200/1500 | ±1 | Frame Oscillation / Shaft Oscillation | Dual-Cylinder Displacement / Single-Cylinder Displacement / Servo Displacement |
| 6m | 1200/1500 | ±1 | Frame Oscillation / Shaft Oscillation | Dual-Cylinder Displacement / Single-Cylinder Displacement / Servo Displacement |
