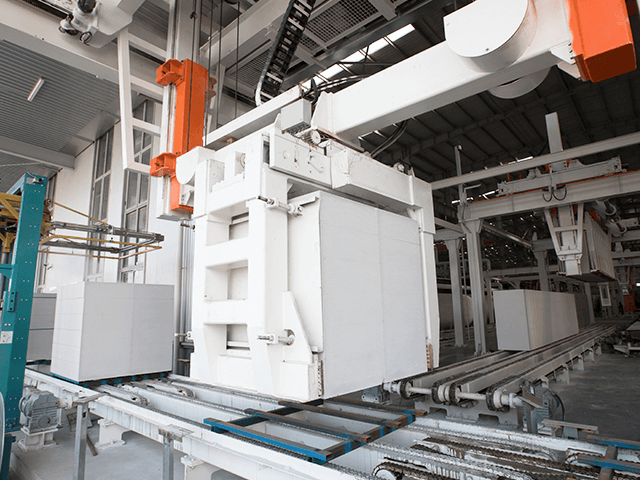

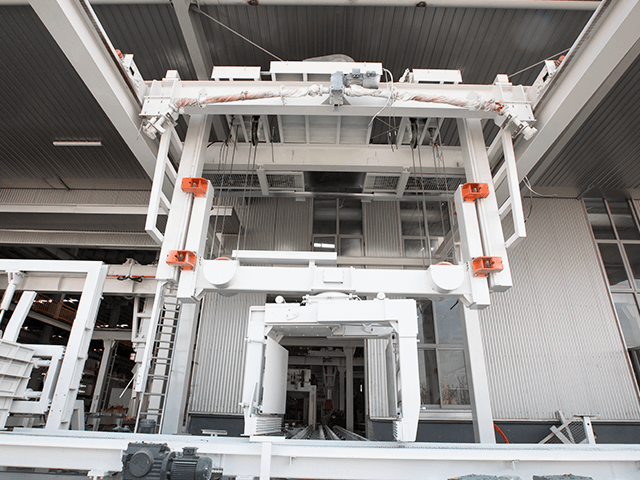

The rotating hoister is used in the finished products packing section to change product orientation before pallet placement or later packing steps. The machine picks up the block after combining, turns it 90 degrees along the 1.2 m length, and then places it on the pallet. This makes it an important positioning device in the packaging flow.
In the AAC production line, the rotating hoister serves as a transfer and orientation adjustment unit in the final handling stage. Its function is to lift the combined block, rotate it in the required direction, and place it in the correct position for palletizing or later packaging operations. The line arrangement also includes automatic division and separation of blocks and panels.
The rotating hoister receives the combined product, lifts it, and changes its orientation before placing it onto the pallet. This turning action helps match the finished product position with the pallet and later packaging arrangement in the final section of the line.
It is used for finished-product turning and placement in the packing section. Typical applications include block rotation before palletizing, orientation adjustment before later wrapping or strapping, and automated finished-product handling lines that require controlled turning.
| Specifications | Clamping Height (mm) | Rotation Method | Traversing Method | Lifting Method |
|---|---|---|---|---|
| 1.2m × 1.2m | 1200 / 1500 | Motor-driven / Servo-driven / Non-rotating | Rack & Pinion / Wheel & Rail | Hydraulic Lifting |
| 1.2m × 1.0m | 1200 / 1500 | Motor-driven / Servo-driven / Non-rotating | Rack & Pinion / Wheel & Rail | Hydraulic Lifting |
