The slurry agitator is used together with the transition slurry pool next to the slurry storage tank. This transition slurry pool serves two functions in the slurry transfer and connection part of the raw material processing section.
In the AAC production line, the transition slurry pool next to the storage tank serves one function by pumping slurry to the batching area and another function by connecting each single tank. The slurry agitator works in this part of the process to support slurry movement and tank-to-tank connection before the slurry enters the next stage.

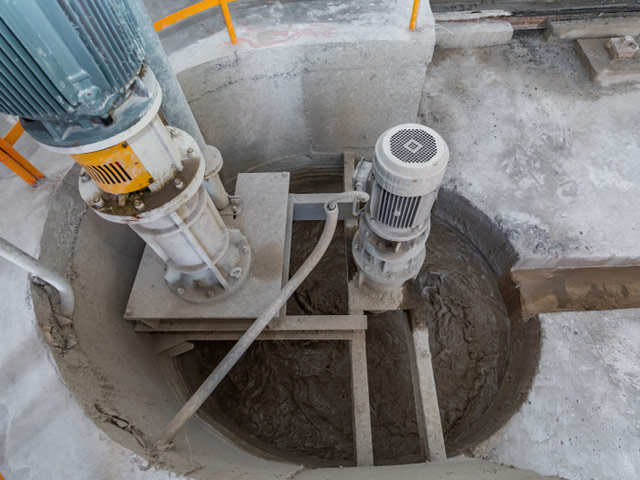

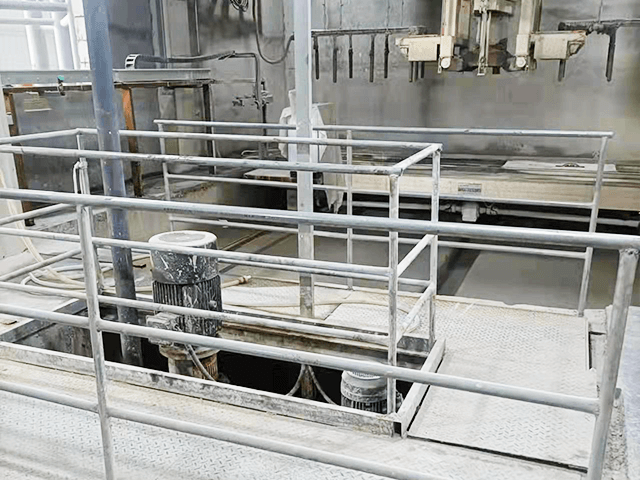

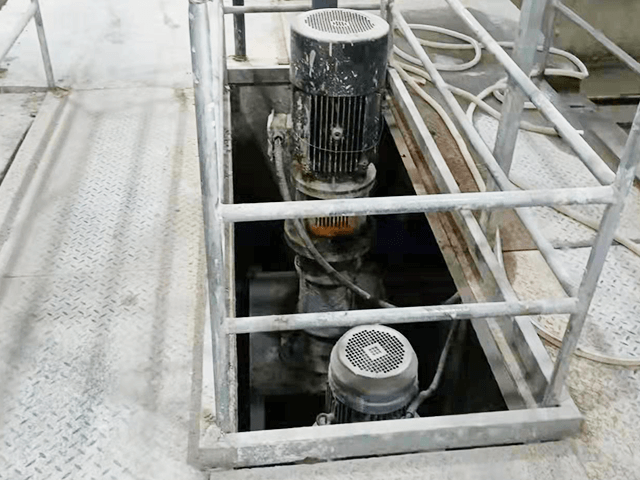

The agitator operates in the transition slurry pool arranged next to the slurry storage tank. This part of the system connects storage and batching by allowing slurry transfer to the batching area while also linking individual tanks.
The slurry agitator is used in slurry transfer points between storage and batching. It is suitable for AAC production layouts where slurry needs to be pumped onward and where multiple slurry tanks need process connection through a transition pool.
| Specifications | Diameter (mm) | Depth (mm) | Power (kW) |
|---|---|---|---|
| 2×1.6 | Φ2000 | 1600 | 5.5 |
| 3×1.6 | Φ3000 | 1600 | 11 |
| 3.6×1.6 | Φ3600 | 1600 | 15 |
| 4×1.6 | Φ4000 | 1600 | 15 |
