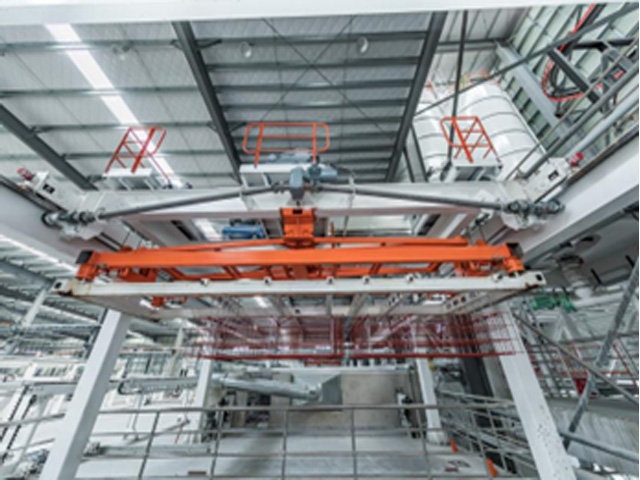

The inserting and drawing out hoist is used for transporting the frame with steel mesh in the AAC panel production process. the assembled steel frame or steel cage is inserted into the mould and then pulled out of the mould by the hoister. It also explains that the accuracy of the hoister affects the cage or mesh position in the mould, so the equipment is closely related to positioning and transport during panel production.
In the AAC panel production line, this hoist is used during the stage where assembled steel frames or steel cages are moved into and out of the mould. it can realize rapid rotation and accurate positioning of the steel mesh assembled in the production process of aerated concrete. It also notes that the equipment state and operation accuracy directly affect production efficiency and the product qualification rate of aerated concrete panel, which makes the hoist an important part of this process section.

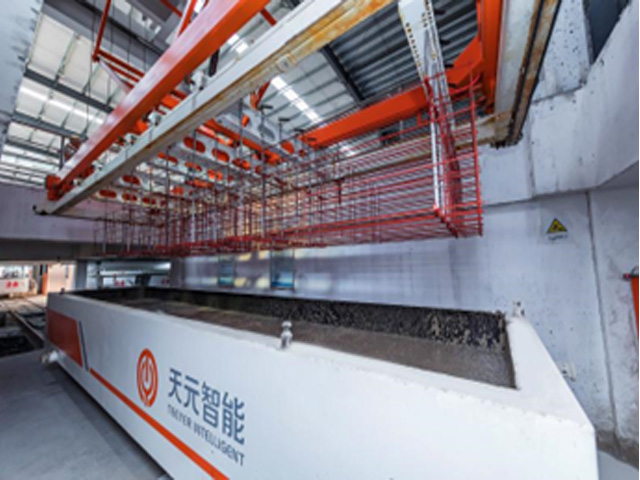

The hoister transports the frame with steel mesh, inserts the assembled steel frame or steel cage into the mould, and then draws it out again. During this process, positioning accuracy and rotation performance affect the final location of the cage or mesh inside the mould and therefore influence later production results.
This hoist is suitable for AAC panel production processes where the frame with steel mesh must be transported, inserted into the mould, and then pulled out again. It is used in applications that require accurate positioning of the cage or mesh in the mould and rapid rotation during handling. It is specifically relevant to aerated concrete panel production rather than general material transfer.
Transport of frames with steel mesh
Insertion of assembled steel frame or cage into mould
Drawing out frame or cage from mould in AAC panel production
| Specification | Green Body Width (mm) | Lifting Mechanism | Traversing Mechanism |
|---|---|---|---|
| 4.2m | 1200 | Steel Wire Rope | Rack & Pinion / Wheel & Rail |
| 4.8m | 1200/1500 | Steel Wire Rope | Rack & Pinion / Wheel & Rail |
| 6m | 1200/1500 | Steel Wire Rope | Rack & Pinion / Wheel & Rail |
