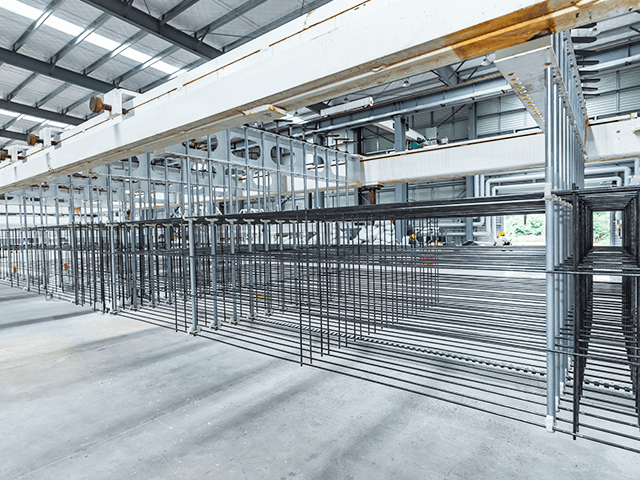

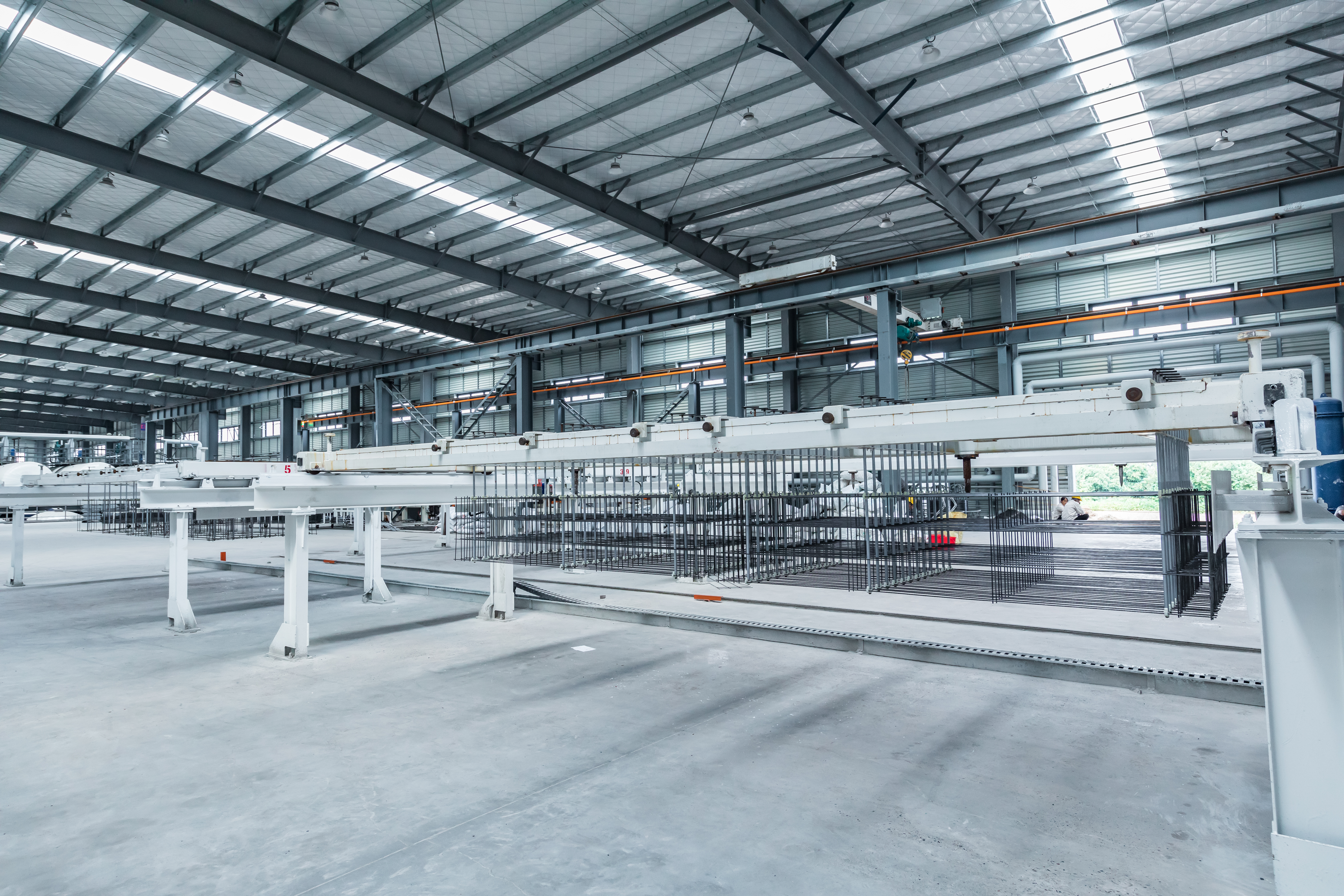

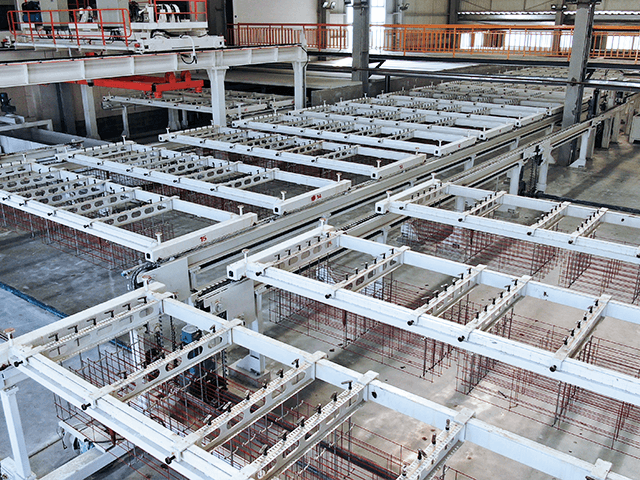

The mesh assembly frame conveyor line is described on the system as a circulation transmission system. this line consists of a mesh assembly frame rack, a mesh assembly frame ferry cart, and other related devices. In the steel mesh fabricating and circulating section, this arrangement provides the transfer route needed for frame circulation and related handling steps.
In the AAC panel production process, the mesh assembly frame conveyor line is used to support circulation transmission of mesh assembly frames. Because the line is identified as a circulation transmission system with the frame rack and ferry cart as main elements, its role is the organized transfer and circulation of mesh assembly frames within this section of the production line. The locating systems also indicate that accurate frame positioning is important in the associated operations.
The line forms a circulation transmission system through the mesh assembly frame rack, the mesh assembly frame ferry cart, and related devices. Within the section, this allows mesh assembly frames to move through the required handling and circulation steps in an organized way.
This conveyor line is used where mesh assembly frames need to circulate between related devices in the steel mesh fabrication and handling process. It is suitable for AAC panel production lines that require a rack, a ferry cart, and other related devices to form a continuous transfer path for frames. It is suitable for use as part of a circulation-based transmission arrangement rather than as a single conveyor unit.
Mesh assembly frame circulation
Frame transfer between related devices
Circulation transmission in AAC panel production
| Specification | Green Body Width (mm) | Shuttle Car Travel Method | Shuttle Car Conveying Method | Rack Conveying Method |
|---|---|---|---|---|
| 4.2m | 1200 | Wheel-on-Rail Travel | Chain Conveying | Manual / Chain Conveying |
| 4.8m | 1200/1500 | Wheel-on-Rail Travel | Chain Conveying | Manual / Chain Conveying |
| 6m | 1200/1500 | Wheel-on-Rail Travel | Chain Conveying | Manual / Chain Conveying |
