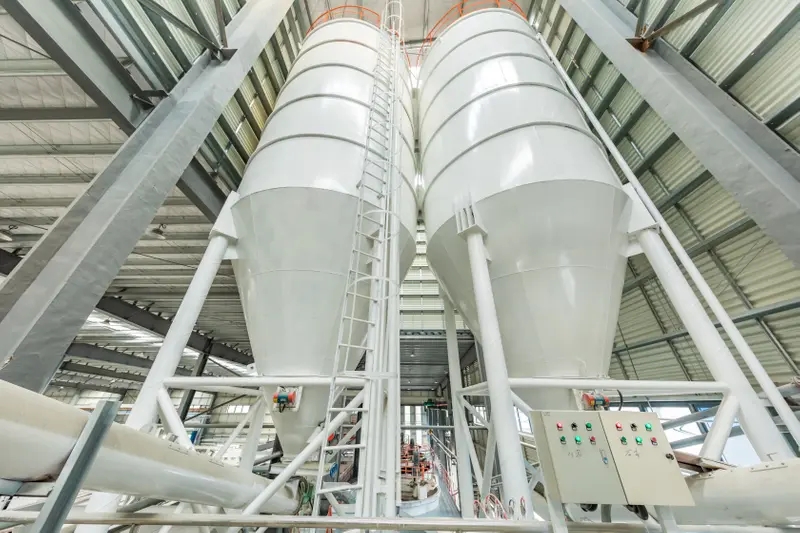

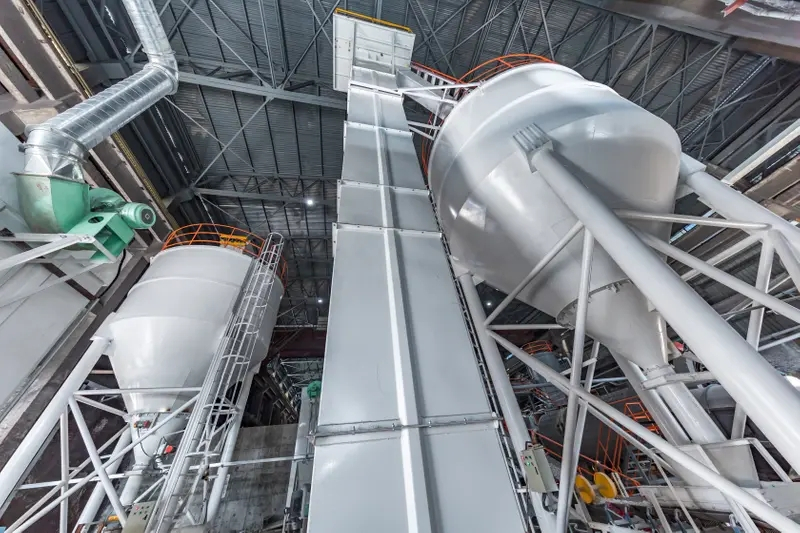

The powder material silo is used for storing powdered raw materials in the AAC production line. It is suitable for storing dry particles and powders, and the page states that it can effectively prevent the mixing of moisture and dirt during storage.
In the raw material processing section, the powder silo stores cement, lime, and fly ash before they are transferred to the next processing or batching step. Its role is to keep powdered materials in a dry and clean condition while supporting the storage volume needed for the production line capacity and the transportation distance of the raw materials.
Powdered raw materials are delivered into the silo for storage and then discharged according to the process arrangement of the production line. This equipment is used to keep powdered raw materials in a clean and dry storage condition.
the silo is mainly used for storing cement, lime, and fly ash in the AAC production line. It is suitable for production arrangements where powdered materials need centralized storage before controlled discharge to conveying or batching equipment.
| Effective Volume (m³) | Diameter (m) | Cylindrical Height (m) | Conical Height (m) |
|---|---|---|---|
| 100 | 4.5 | 6 | 2.6 |
| 150 | 4.5 | 9 | 2.6 |
| 200 | 4.5 | 12 | 2.6 |
