Teeyer advantages:
The inlet is equipped with control valve and flowmeter to control the water flow. The sand is weighed by the belt scale, and the ratio of water and sand is automatically controlled by the computer.

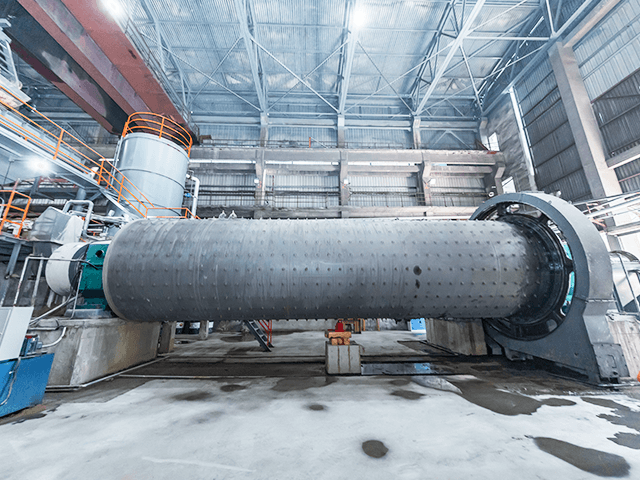

The ball mill is a necessary part of the raw material preparation section. There are two kinds of ball mill in an AAC production line: wet type and dry type. Wet type ball mill is used to mill sand while the dry type is for lime stone.

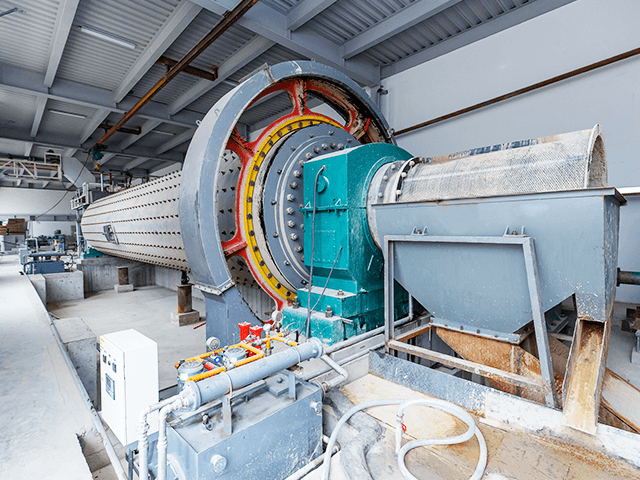

The ball mill comprises several main parts, like feeding part, discharging part, rotating part, transmission part (gear reducer, small transmission gear, motor, electronic controller). The hallow shaft is made from casting steel parts, and its lining is interchangeable. The big rotating gear is processed with casting steel parts by gear hobbing. The inner wall of the barrel is embedded with an anti-wear lining plate. In general, this ball mill is stable and reliable for the milling operation.
Principle
Wet Type Ball Mill

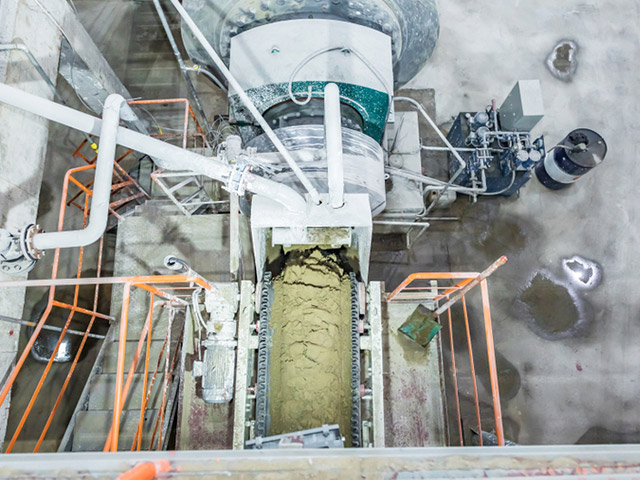

Sand (or fly ash, gypsum) is conveyed to the ball mill by electromagnetic vibration conveyor and belt conveyor. After milling, the material will be pumped to the slurry storage container.
Dry Type Ball Mill
Lime is conveyed to the jaw crusher by electromagnetic vibration feeding machine and belt conveyor. After crushing, the material will be conveyed to the lime storage silo by the bucket conveyor. Then the lime gravel will be transferred to the ball mill through a screw conveyor. The mashed material then will be conveyed to the powder storage silo by spiral conveyor screw conveyor and bucket conveyor.
Parameters
Model | Rotating speed (rpm) | Steel ball (ton) | Original material size (mm) | Final material size (mm) | Production capacity (ton/h) | Power (kW) | Weight (ton) |
φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
φ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
φ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
φ1200×3000 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5 | 45 | 12.8 |
φ1200×4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
φ1500×3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5 | 90 | 17 |
φ1500×4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
φ1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-6 | 132 | 2407 |
φ1830×3000 | 24 | 11 | ≤25 | 0.074-0.4 | 4-10 | 180 | 28 |
φ1830×6400 | 24 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
φ1830×7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
φ2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-22 | 370 | 48.5 |
φ2200×6500 | 21 | 30 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
φ2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-29 | 475 | 56 |
