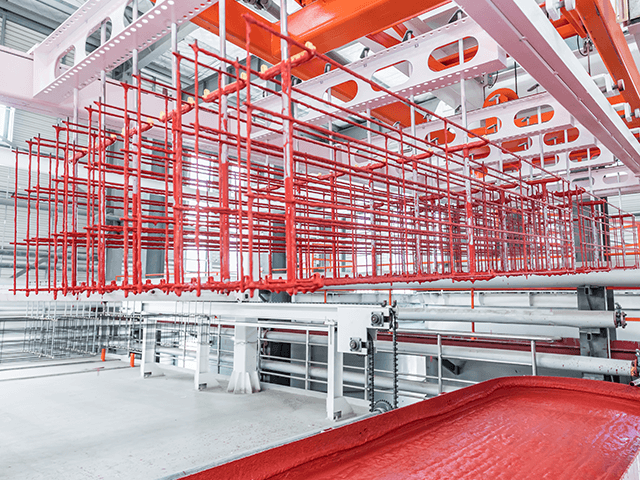

The anticorrosive liquid dipping and drying system is used in the steel mesh fabricating and circulating section to treat assembled frames and cages before they move to the next step of AAC panel production. The dipping hoister carries the assembled frames and cages into the anticorrosive liquid trough and the wax trough, and then moves them to the drying oven. This creates the system as a coordinated process for dipping, lifting, draining, and drying rather than as a single isolated device.

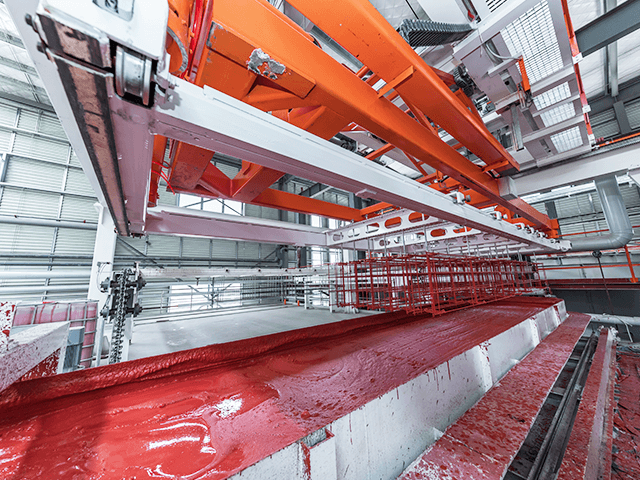

In the AAC panel production line, this system handles the transfer and treatment of assembled frames and cages during the anticorrosive process. The hoister moves the assembled frames and cages into the anticorrosive liquid trough and wax trough and then sends them to the drying oven. The system also includes the assembly frame and side plate locating system and the mould locating system used during insert and put out processing, so positioning accuracy is an important part of the operation.
A sequence in which the dipping hoister carries assembled frames and cages, immerses them in the anticorrosive liquid trough and wax trough, and then moves them to the drying oven. The process combines transfer, immersion, and drying so that the treated frames and cages can continue in the circulation flow.
This system is used where assembled frames and cages need to be immersed in anticorrosive liquid and wax and then dried before further circulation in the AAC panel process. It is suitable for operations that require the steel frames and cages to be moved through dipping and drying in an organized sequence. the system is intended for steel frame and cage handling where accurate positioning is required during related processing steps.
Treatment of assembled frames and cages
Anticorrosive liquid dipping
Wax trough dipping
Drying after dipping in AAC panel production
| Specification | Green Body Width (mm) | Drying Chamber Conveying Method | Drying Chamber Heating Method |
|---|---|---|---|
| 4.2m | 1200 | Chain Conveying | Radiator |
| 4.8m | 1200/1500 | Chain Conveying | Radiator |
| 6m | 1200/1500 | Chain Conveying | Radiator |
