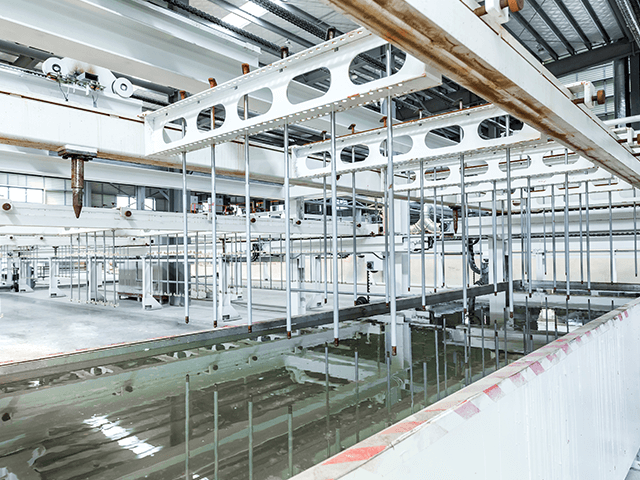

The wax-dipping lifting device is used to lift the assembled steel mesh together with the steel pin and immerse them in a wax dipping pool. this process prevents slurry from adhering to the steel pin after demolding. The related transfer process includes steel mesh sheets or cages are immersed in solution, lifted out, allowed to drip, and then placed in a drying box.
In AAC panel production, this device handles the lifting and immersion stage for assembled steel mesh and steel pins. Its role is to move the assembled steel mesh and pins into the wax dipping pool and support the treatment process before subsequent production steps. suspension, immersion, lifting, dripping, and transfer to a drying box, showing that the device is part of a controlled handling sequence in the steel mesh circulation section.

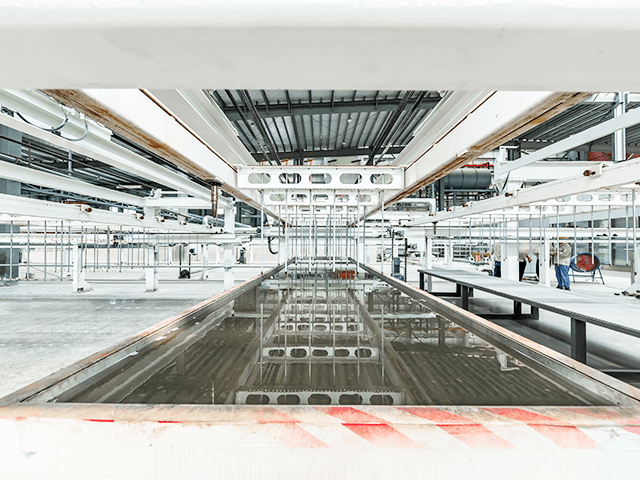

The assembled steel mesh together with the steel pin is lifted and immersed in the wax dipping pool. After immersion, the lifted parts are held above the liquid surface briefly so excess liquid can drip off, and then they are placed in a drying box. This sequence provides a clear transfer path from dipping to drying.
This device is used in production stages where assembled steel mesh and steel pins need to be immersed in a wax dipping pool as part of the treatment process. It is also relevant for operations where dipped components are lifted out, allowed to drain, and then moved to a drying position. Based for the equipment, the device is intended for AAC panel lines that need wax dipping to reduce slurry adhesion to steel pins after demolding.
Wax dipping of assembled steel mesh
Treatment of steel pins before later production steps
Drain-off and transfer to drying box in AAC panel production
| Specification | Green Body Width (mm) | Lifting Mechanism | Conveying Method |
|---|---|---|---|
| 4.2m | 1200 | Hydraulic | Chain Conveying |
| 4.8m | 1200/1500 | Hydraulic | Chain Conveying |
| 6m | 1200/1500 | Hydraulic | Chain Conveying |
