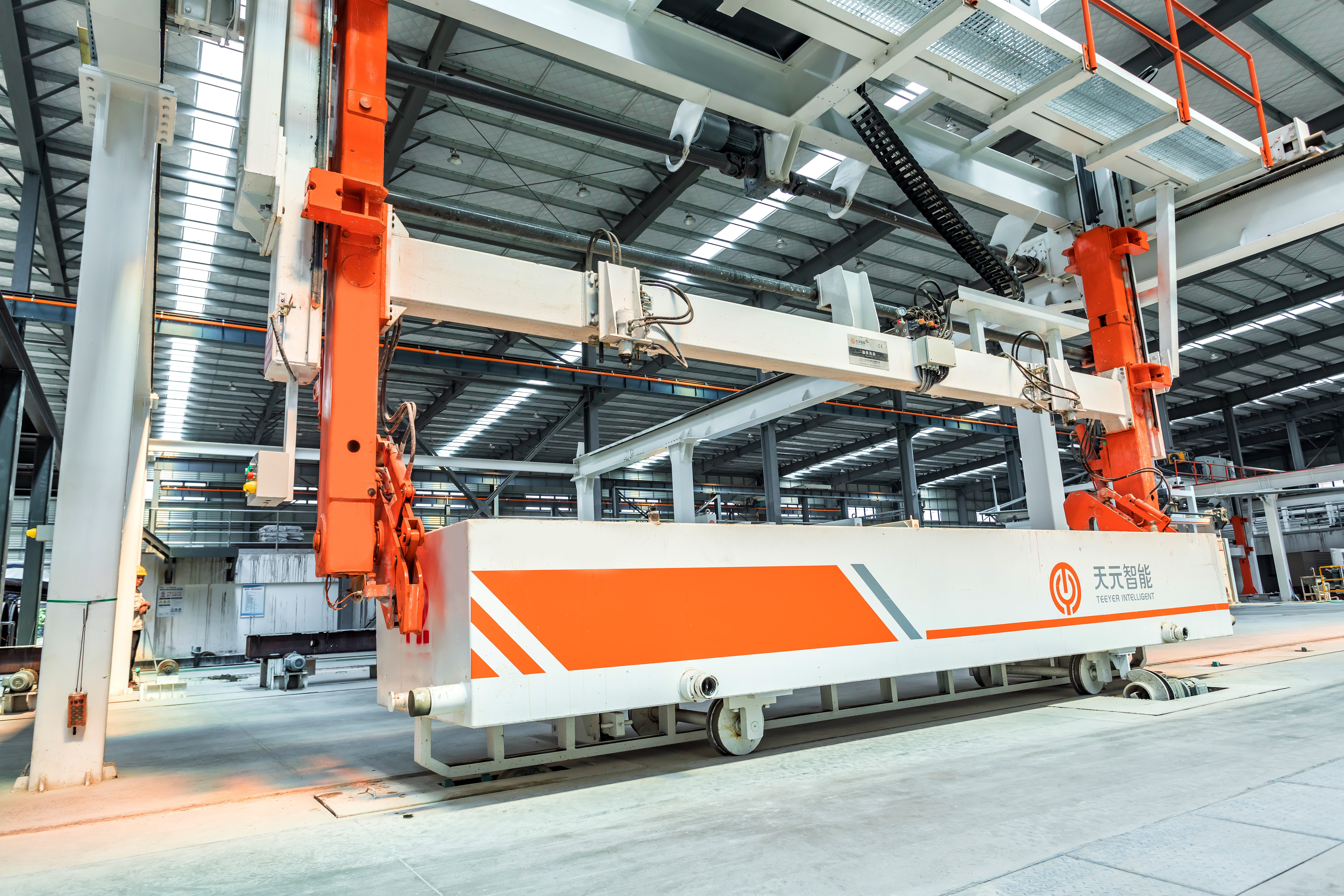

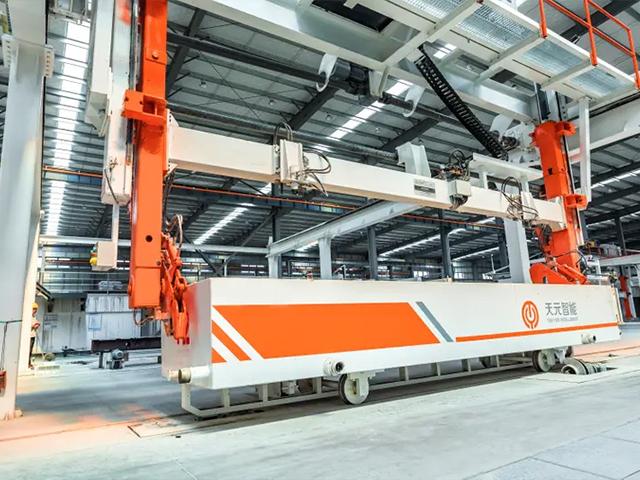

The AAC mould is used in the pouring and pre-curing section as the container and carrying base for the slurry before demoulding and later transfer. The suitable type and quantity depend on the target annual production capacity. It also notes that the mould consists of steel channel and steel plate, with forging wheels at the bottom and sealing strips fixed to avoid leakage of the poured material. It is used in the pouring and pre-curing section, where it works together with the related upstream and downstream operations.

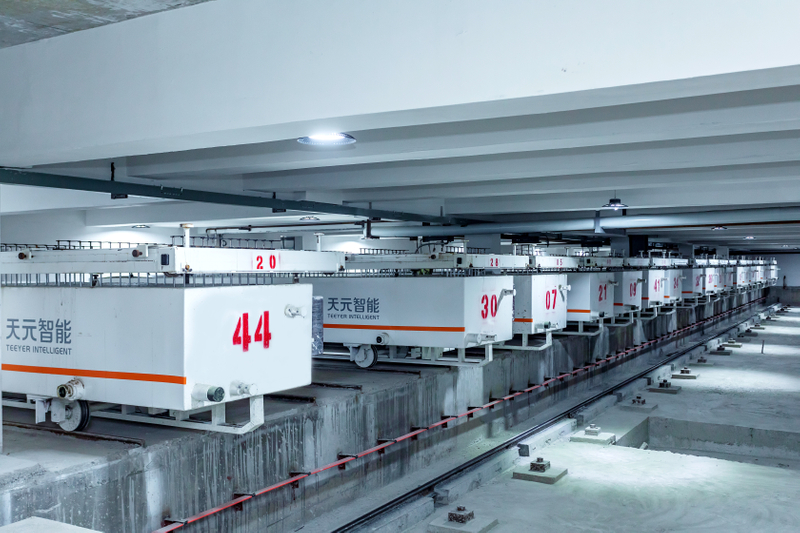

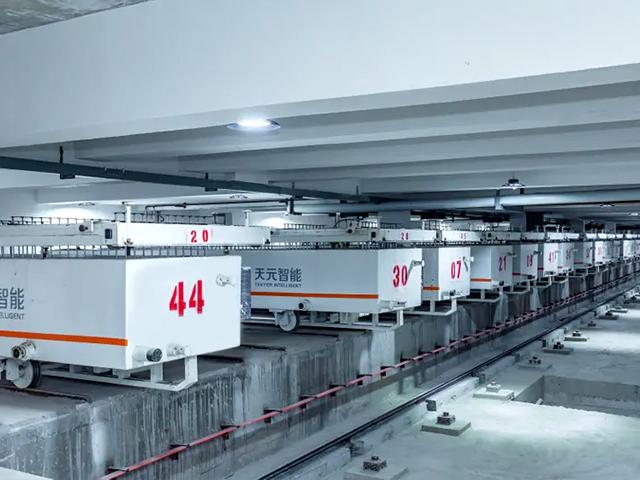

In the AAC production line, the mould receives the slurry during pouring and keeps the material in place for the following pre-curing stage. Its function is to provide the required mould cavity and structural support so that the poured material can be held, moved and prepared for later demoulding and cutting related operations. Teeyer usually divides the mould into 4.2 m, 4.8 m and 6.0 m types, and can customize the size according to customer needs. It is arranged with the related equipment and transfer steps in the pouring and pre-curing section.

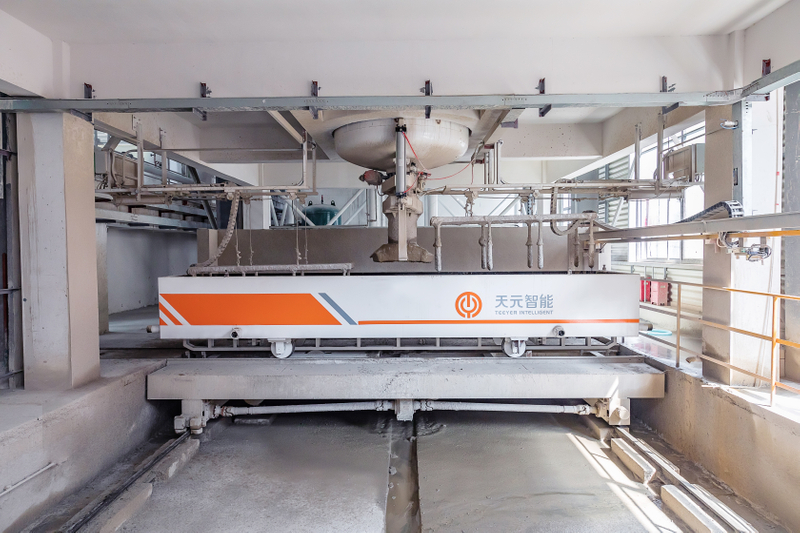

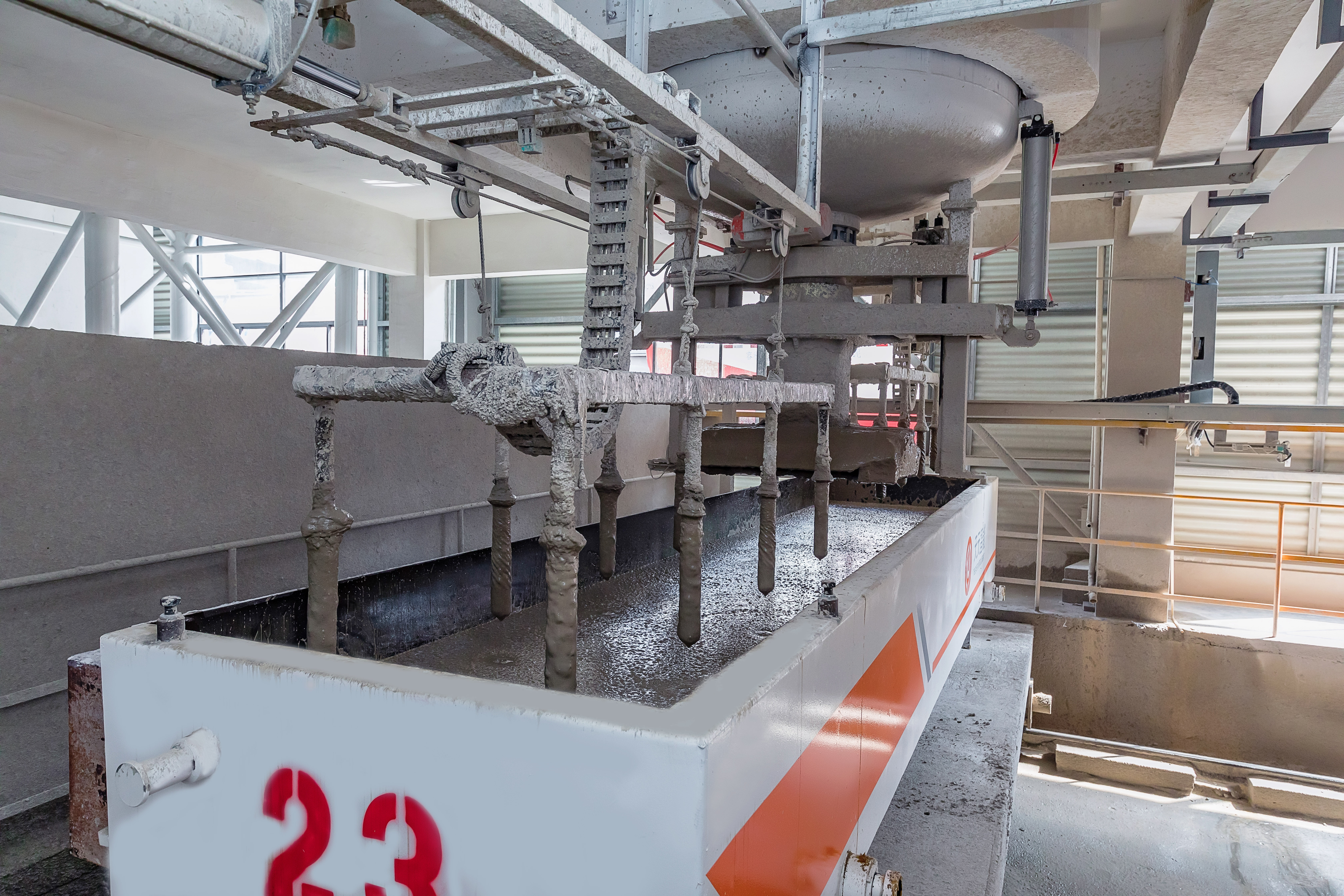

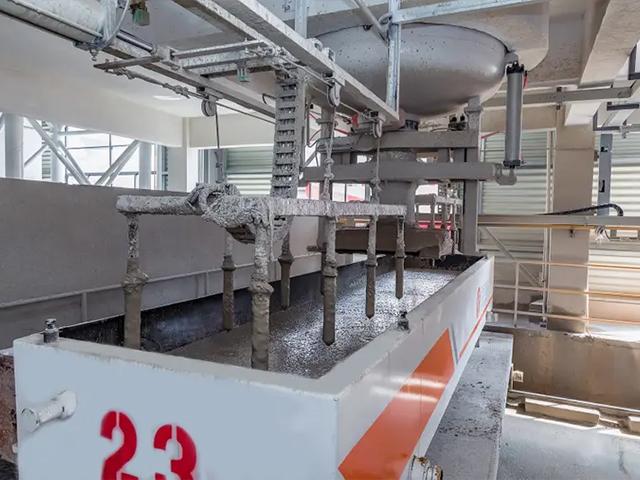

During pouring, the mould receives and contains the prepared slurry. Its structural members, wheels and sealing strips support carrying, positioning and leakage prevention before the mould enters later pre-curing and transfer stages.
The AAC mould is used in AAC production for receiving the poured slurry and carrying the material through the early stage before demoulding and later cutting related transfer. It is suitable for production lines that require mould selection according to annual capacity and mould size arrangement. It can be used in AAC production layouts that follow the same process route, material handling sequence, and operating arrangement.
| Specifications | Net Dimensions After Cutting | ||
|---|---|---|---|
| Length (mm) | Width (mm) | Height (mm) | |
| 4.2m | 4200 | 1200 | 600/625 |
| 4.8m | 4800 | 1200/1500 | 600/625 |
| 6m | 6000 | 1200/1500 | 600/625 |
